GQ-4X True USB Eprom Programmer
GQ-4X Universal IC Programmer
The Worlds Best EPROM BURNER
Brought to you by DarkwireBurn Eprom Burn...

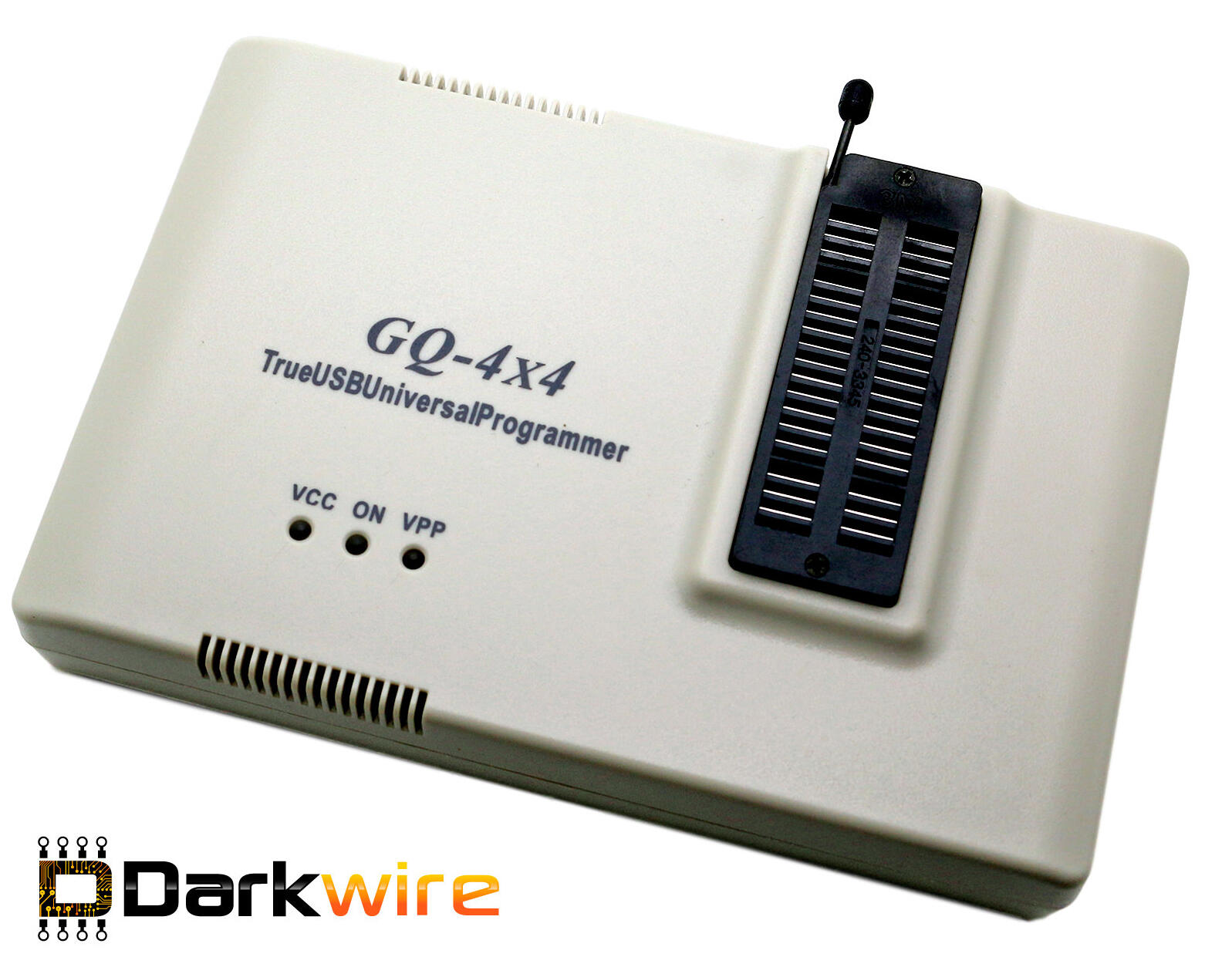

GQ-4X Version 4 True USB Programmer
With its complete new professional design, True USB PRO 40pin Willem programmer GQ-4X4 is the first & exclusive Willem
Universal Programmer in the market with the following unique features:

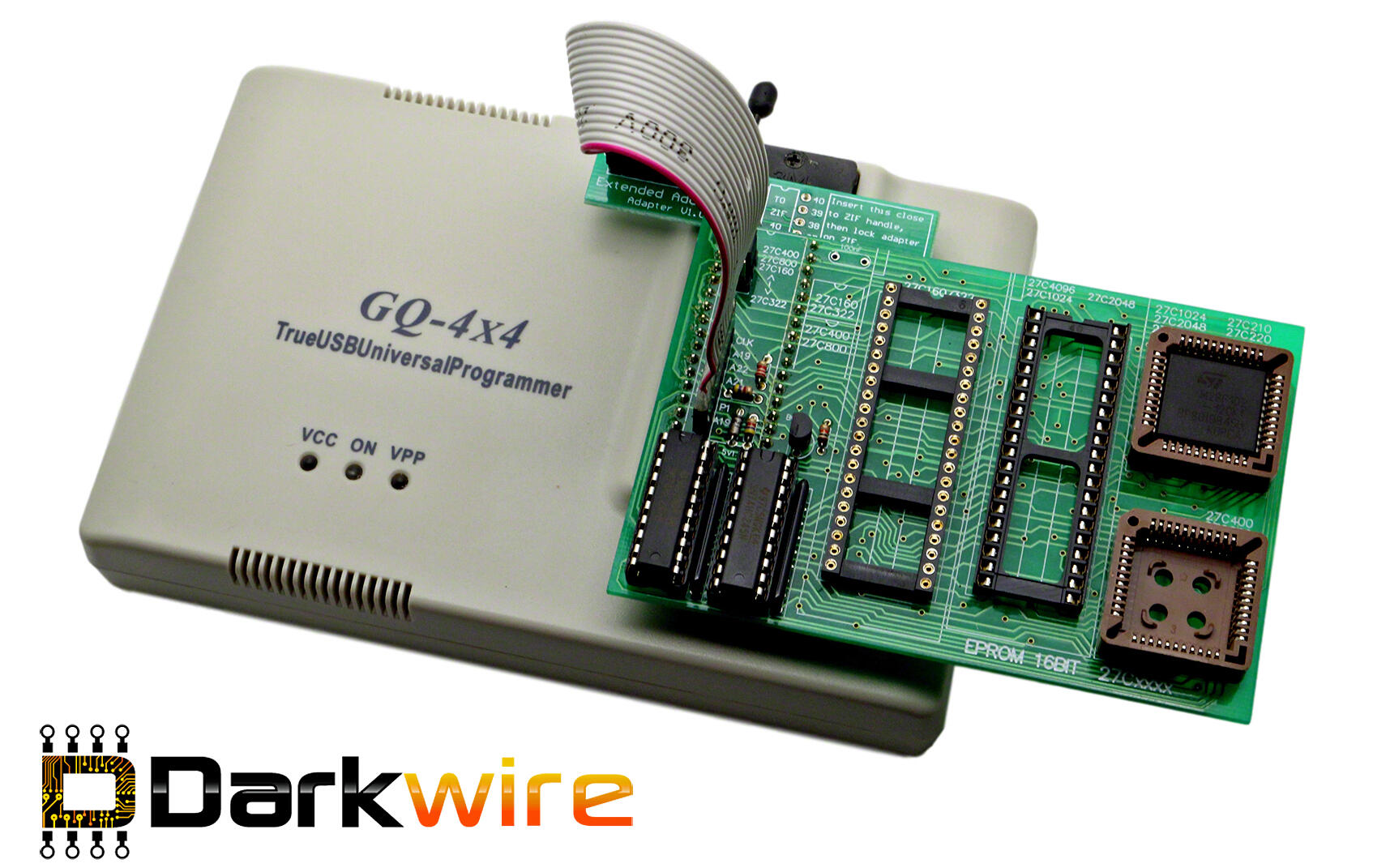

Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support;Supported O/S: XP 32bit, XP 64bit, Vista 32bit, Vista 64bit, Windows7 32bit/64bit. New Version 4 now also supports Win8, Win8.1, Windows10 and Windows11Real True USB interface for both data transfer and power supplyHigh speed/fast user-friendly and simple to useSoftware update regularly, free life-time software upgrade/downloadMulti-languages support capability: Chinese ,Czech, English, French, German, Spanish, PortugueseShown above with a legacy LPT Willem 16-bit adapter attached.
Most legacy adapters from the Parallel Port Willem Programmer will work with the GQ-4X4.
The application-oriented & application-enhanced design facilitates GQ-4X4 supports thousands of most popular application devices (growing) and ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset, mileage, satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, xBox, Wii gaming machines EPROM duplicate, Altera Xilinx JTAG, PIC/MCU development, newer laptop technology and newer desktop PC etc.The GQ4x4 supports most of the older UV erasable eproms at voltages up to 24v.
It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44, TSOP48, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, SST39VF3201, TE28F102, 27C1024, 27C1028, HD6475, 29F800, 29LV800, 29F032...
Key & Unique Features
Neat robust enclosure is designed to suit the portable and field convenient applications40 pin ZIF socket supports more chips without requiring an adapterEasy and simple In Circuit Serial Programming (ICSP) using a header, cable and clip. Most eeproms can be programmed without removing them from the circuit PCB.Supports all the old UV erasable eproms that most other programmers have forgotten about.All required items are available at Darkwire
Only AU$189.95 at Darkwire.com.au
GQ-4X4 Universal Programmer
Dual power supply capability: USB port & DC plug (Plugpack available separately) and automatic voltage control.
Can program EPROM, EEPROM, FLASH, PIC, MCU, SPI, JTAG Devices. It can be used for many applications, such as car automotive field ECU Chiptuning, airbag reset, mileage, satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, Xbox, Wii gaming machines EPROM duplication, Altera Xilinx JTAG, PIC/MCU development, etc.
On-Board MCU for stable performance & automatic/accurate voltage control.Easy and simple In Circuit Serial Programming (ICSP) using a header, cable and clip. Most eeproms can be programmed without removing them from the circuit PCB.All required items are available at Darkwire
Many Programming Adapters are Available

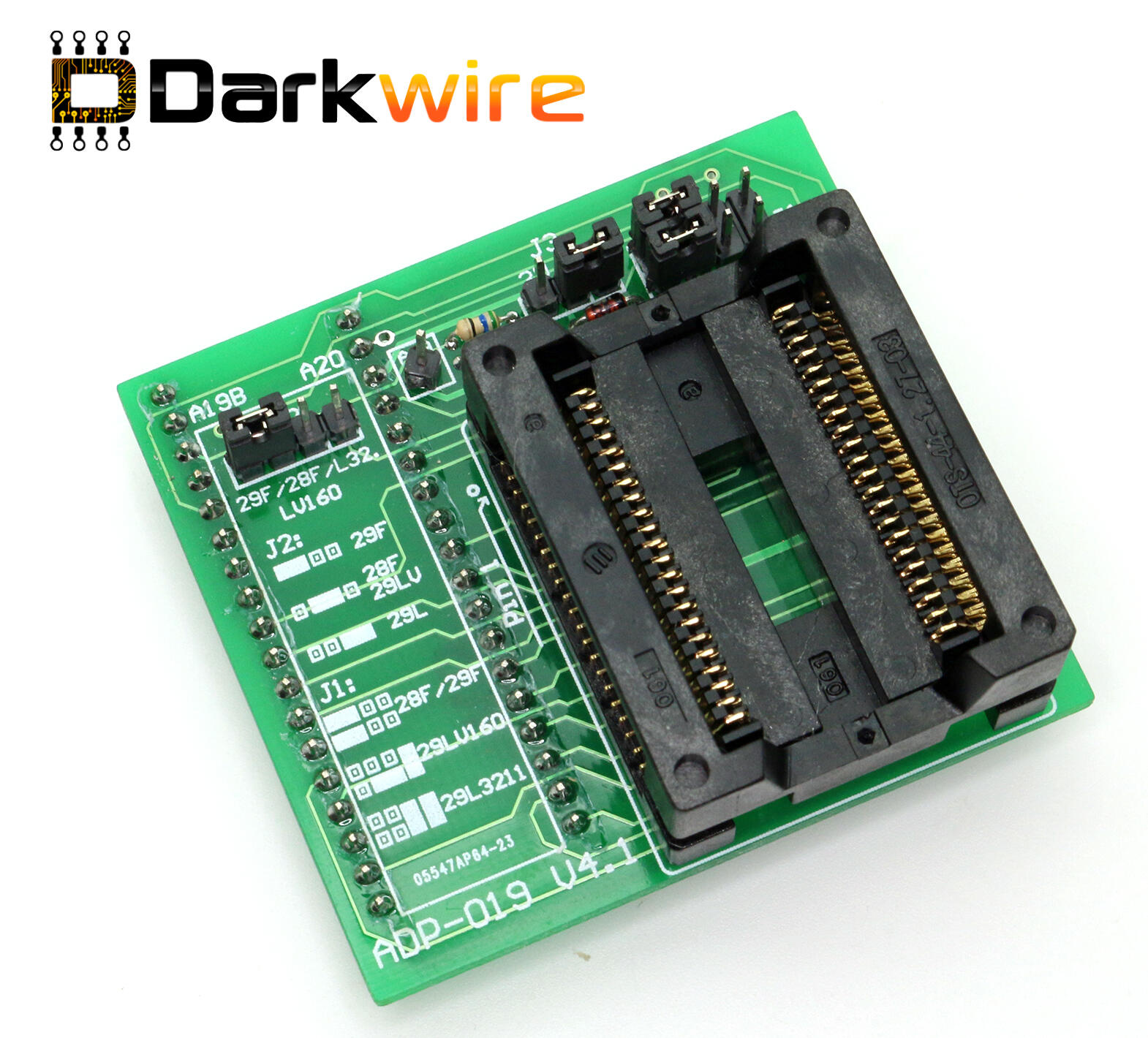

Working with Adapters further expands the supported devices list.Accommodates existing adapters (GQ-3X/2X and many of the legacy parallel LPT Willem adapters)Different IC packages supported using adapters: TSOP48 (16bit & 8 bit), TSOP32, PSOP44, DIP8 to DIP40, PLCC, SOP, SOIC, MCS-51+, PLCC84, and etc.Adapters are available as optional extras, contact us with your requirements.Adapter shown is ADP019v4 used for PSOP44 chips such as: 28F200, 28F400, 28F800, 29F200, 29F400, 29F800, 29LV160, MX29L3211MC etc.

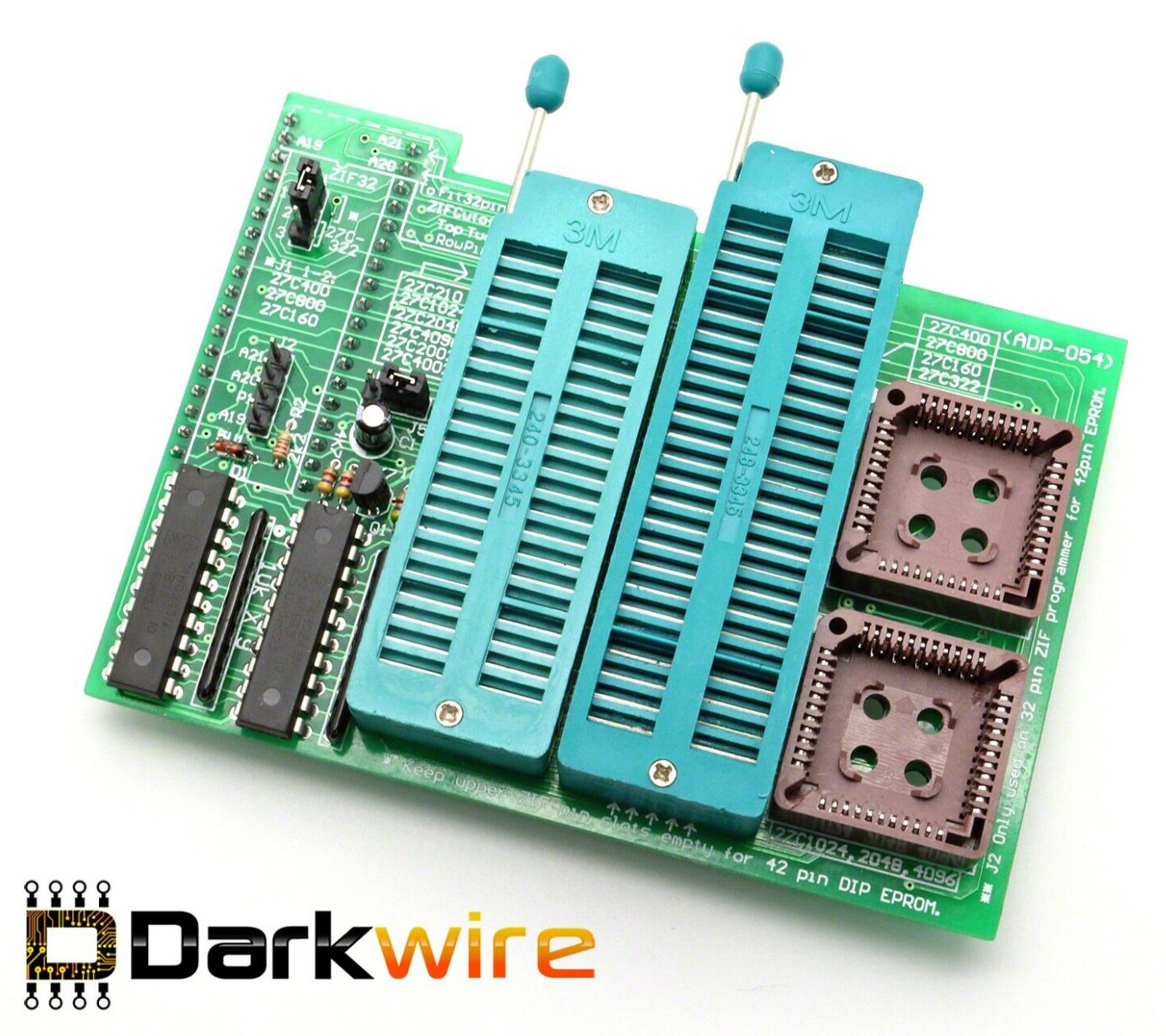

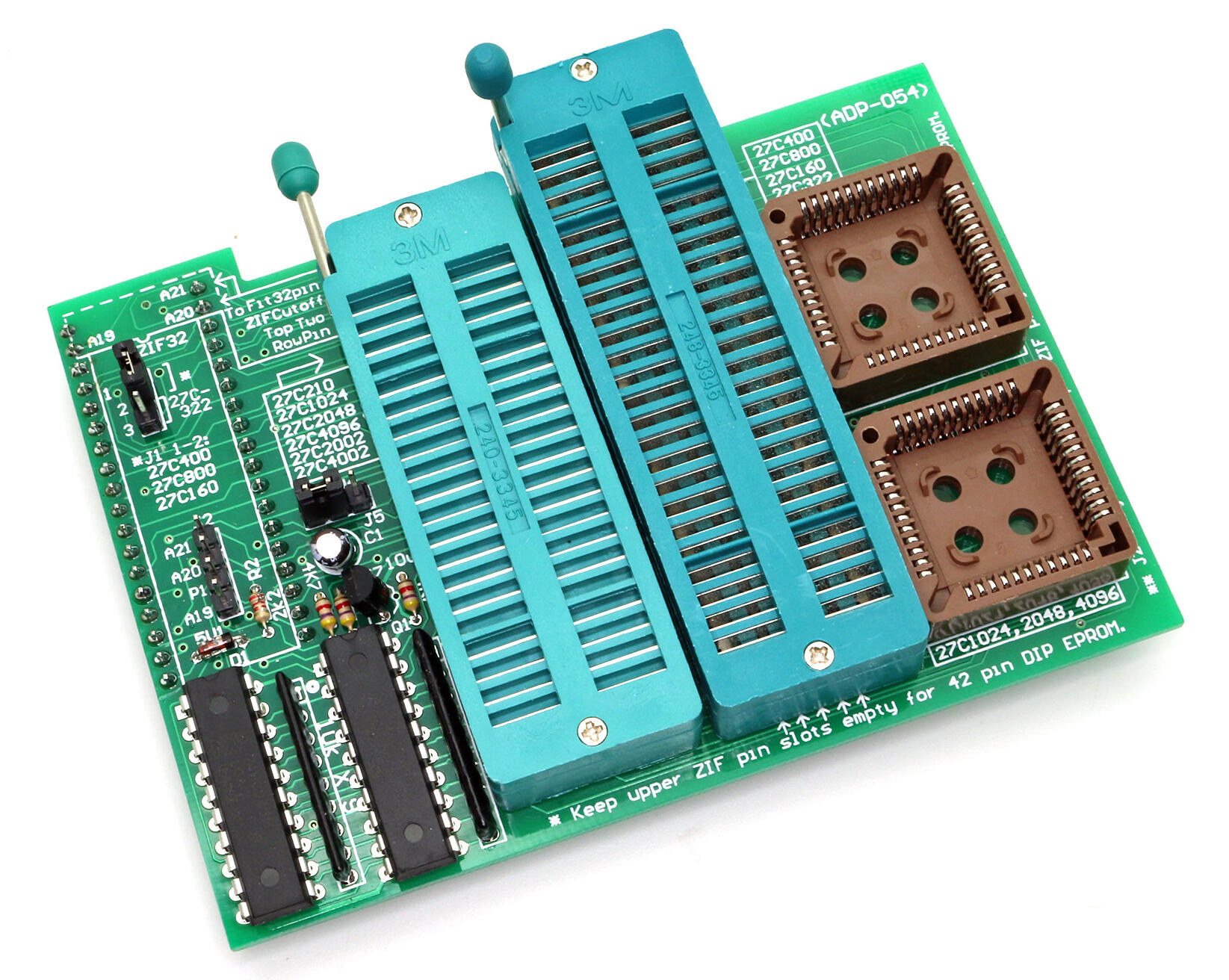

Shown here is adapter ADP054
It has onboard both DIP40 and DIP42 ZIF sockets and two PLCC44 sockets on board so that it is able to support both DIP and PLCC package 16 bit EPROMs easily. PLCC44 chips: CAT28F102, M28F102, 28F102N.Device supported on ZIF socket:
27C1024, 27C2048, 27C4096, 27C210, 27C2002, 27C4002, 27C400, 27C800, 27C160, 27C322.
